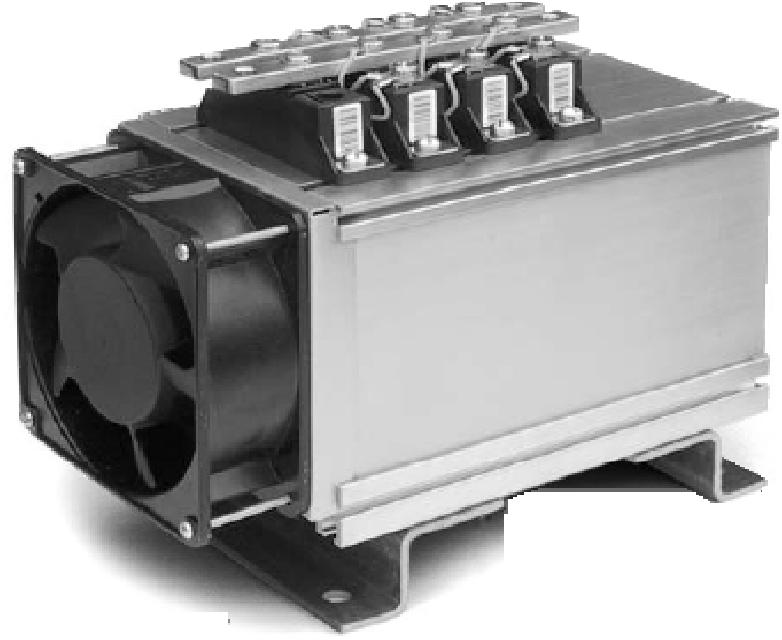

Three Phase Full Wave SCR Bridges

Data Sheet

• PIV Rating (V_RRM): 400-120VAC

• Avg. Forward Current: 47-235A

• Surge Current (I_FSM): 420-7850A

• All Units are MOV Compensated

• Fast Recovery Available

• Free Wheeling Diode and Fan Optional

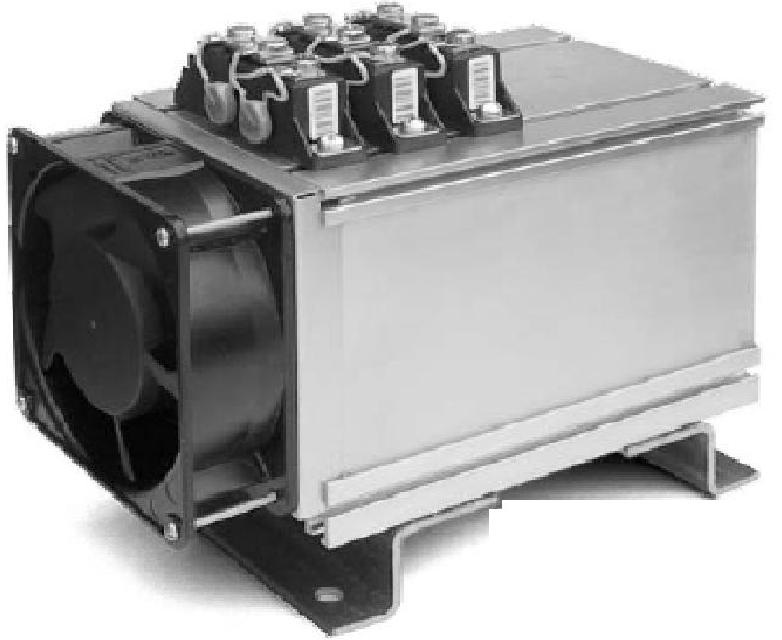

Three Phase SCR Contactor

Data Sheet

• PIV Rating (V_RRM): 400-120VAC

• Avg. Output Current: 47-160Arms

• Surge Current (I_FSM): 420-5100A

• All Units are MOV Compensated

• Fast Recovery Available

• Free Wheeling Diode and Fan Optional
