High Voltage Connectors and Cable

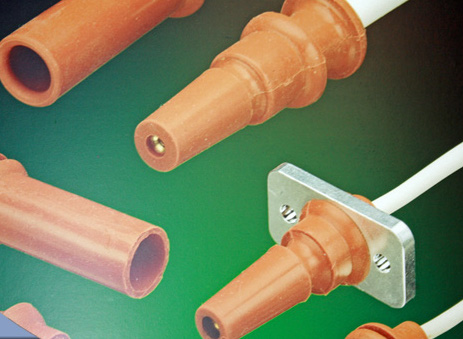

 HV Connectors (14 Series)

Spec Sheet

  • 10-45KVDC, 7.5-10A

  • Molded Silicone Body

  • Tapered Interface

  • Patented Retention Design

  • Quick Connect/Disconnect

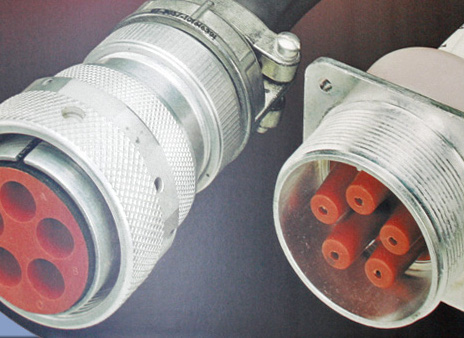

HV Connectors (16 Series)

Spec Sheet

  • 5-50KVDC 4-26A

  • Threaded Screw-on Coupling

  • Die cast Aluminum shell (M5015)

  • 360o Shielded Termination

  • 20 unique configurations/13 contact positions

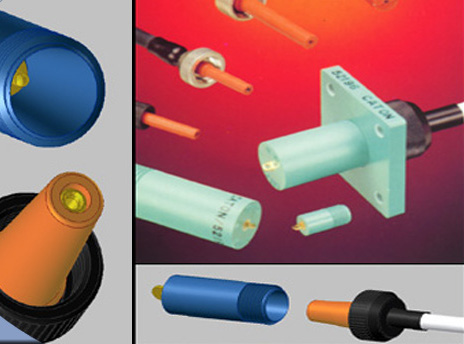

HV Connectors (17 Series)

Spec Sheet

  • 10-40KVDC 6.5-10A

  • Threaded Screw-on Coupling

  • Molded Silicone Body

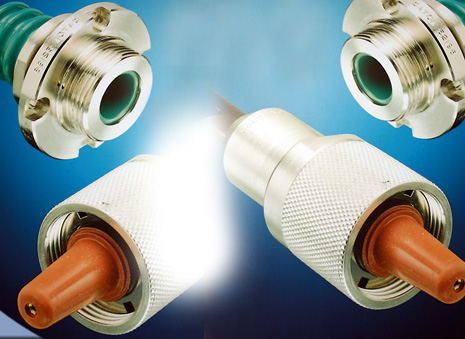

HV Corona-Free Assemblies

  • 60KVDC

  • Silicone Rubber Tapered Interface

  • Molded DAP Receptacle

  • Threaded Screw-on Coupling

  • Highly Reliable

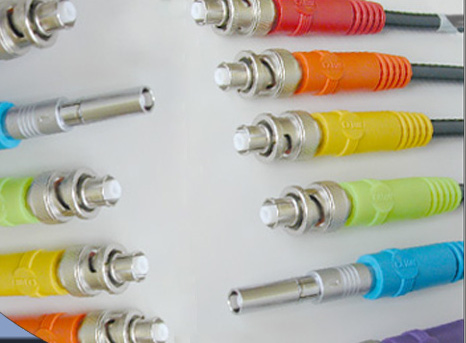

HV Connectors (21 Series)

Spec Sheet

  • 5KVDC

  • SHV Connector on 23AWG RG-59 Coax

  • Molded-on Strain Relief


UL3239 High Voltage Silicone Wire

Spec Sheet

  • 10KVDC-80KVDC

  • 8AWG-22AWG

  • Dual Extruded

  • Excellent Flexibility over extreme temperature range

  • Resistant to Radiation, Moisture and Weathering
