High Power Rectifier Bridges

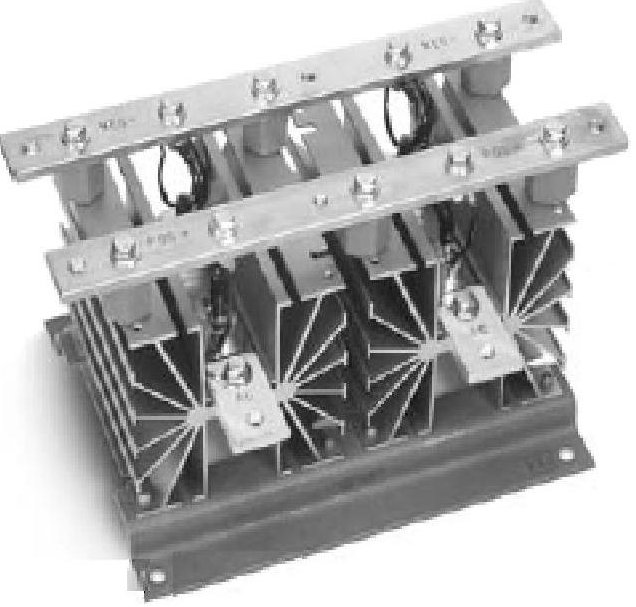

Single Phase Full Wave Bridge Ass'y

Data Sheet

  • PIV Rating (Vrrm): 400-1200V

  • Avg. Forward Current: 120-200A

  • Forward Voltage Drop: 1.5V

  • Surge Current (Ifsm): 1200-3000A

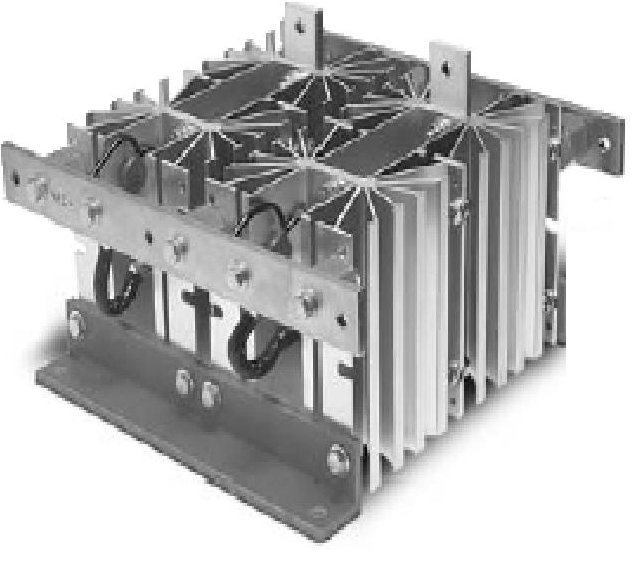

Single Phase Full Wave Bridge Ass'y

Data Sheet

  • PIV Rating (Vrrm): 400-2000V

  • Avg. Forward Current: 250-300A

  • Forward Voltage Drop: 1.5V

  • Surge Current (Ifsm): 3600-6850A



Manufacturers:




| | | | | |
