Three Phase Bridge Rectifiers

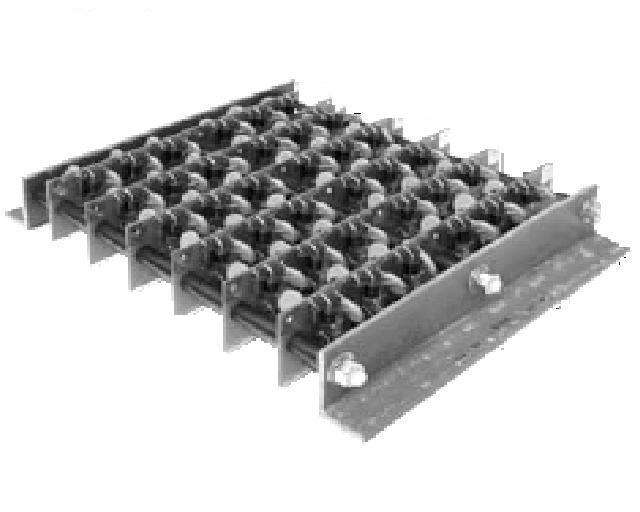

Three Phase Full Wave Bridge (Series 51016)

Data Sheet

  • PIV Rating (Vrrm): 24KV

  • Avg. Forward Current: 13.5A

  • Maximum Forward Voltage Drop: 24V

  • Maximum Surge Current (Ifsm): 400A

  • Fast Recovery Available

  • Other Voltages, Currents, Configurations Available




Three Phase Full Wave Power Bridge

Data Sheet

  • 200-1600VRRM

  • Avg. Forward Current: 22-65A

  • Maximum Surge Current (Ifsm): 370A-1500A

  • Fast Recovery/MOV Compensation

  • Bracket or Stud Mounting

  • Available as Doubler, Quadrupler

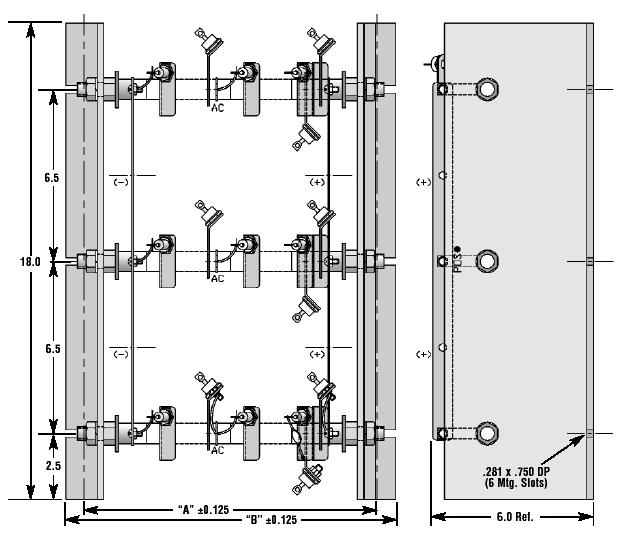

Three Phase High Power Bridge Rectifier Assembly

Data Sheet

  • PRV Rating: 4-36KV Per Leg

  • Maximum Output Current: 42A

  • Peak One Cycle Surge Current: 1500A

  • MOV's Across Each Diode

  • Fast Recovery/MOV Compensation

  • Bracket or Stud Mounting

  • Available as Doubler, Quadrupler
