Bridge Rectifiers

Epoxy Encapsulated Full Wave Bridges

Data Sheet

  • PIV Rating (Vrrm): 5-20KV

  • Avg. Forward Current: 1-5A

  • Forward Voltage Drop: 4.8- 24V

  • Surge Current (Ifsm): 10-150A

  • Fast Recovery Available

  • Solder Turret or Wire Leads


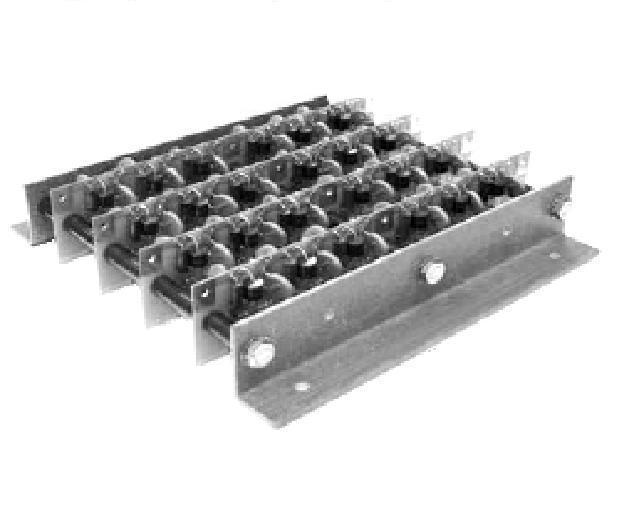

Single Phase Half Wave Rectifier (Series 51000)

Data Sheet

  • PIV Rating (Vrrm): 24KV

  • Avg. Forward Current: 3.0A (more in oil)

  • Maximum Forward Voltage Drop: 24V

  • Maximum Surge Current (Ifsm): 400A

  • Fast Recovery Available

  • Other Voltages, Currents, Configurations Available


Single Phase Full Wave Bridge (Series 51014)

Data Sheet

  • PIV Rating (Vrrm): 24KV

  • Avg. Forward Current: 6.0A (more in oil)

  • Maximum Forward Voltage Drop: 24V

  • Maximum Surge Current (Ifsm): 400A

  • Fast Recovery Available

  • Other Voltages, Currents, Configurations Available

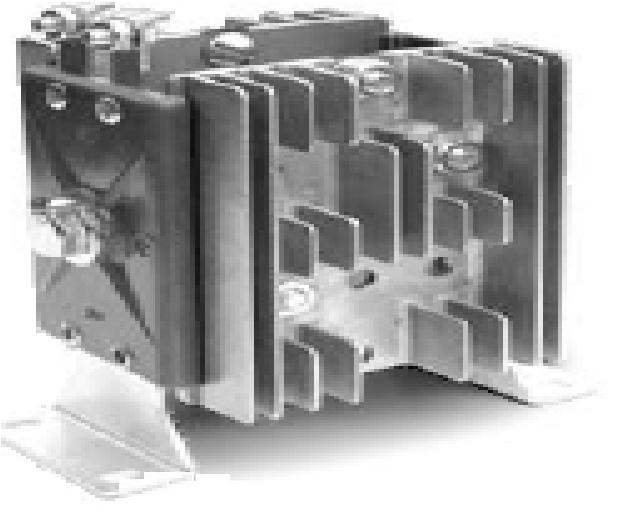

Single Phase Full Wave Power Bridge

Data Sheet

  • 200-1600VRRM

  • Avg. Forward Current: 14-43A

  • Maximum Surge Current (Ifsm): 370A-1500A

  • Fast Recovery/MOV Compensation

  • Bracket or Stud Mounting

  • Available as Doubler, Quadrupler
