High Voltage Capacitors

RFI/Stanley Electronics Catalog


HV Capacitors

  • High Energy Storage

  • Low Inductance

  • Energy Storage

  • Repetitive Discharge

  • High Voltage

  • Reconstituted Mica

  • Film-Foil

  • Metallized Mylar, Polypro, polycarbonate

  • Military and Commercial


HV Capacitors

  • Capacitance Range: 0.01uF - 500uF

  • Voltage: 1kV - 200kV

  • Frequency: DC - Pulse; AC - 400Hz - 100kHz

  • Temperature: -55C to 125C

  • Hermetically sealed

  • Burn-in, Corona testing

  • Military, Industrial, Medical and Commercial applications

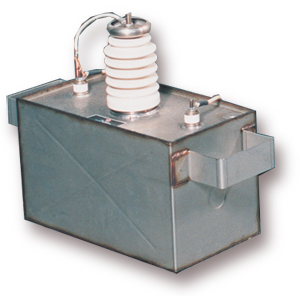

Energy Storage Capacitors

  • Voltage:  21kVDC

  • Capacitance: 0.5uF

  • Dielectric: Plastic/Paper

  • Dimensions: 8.5"H x 4.0"W x 7.5"D

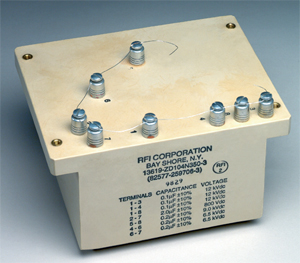

Multi-Element Recon Mica Capacitor

  • Values: 0.1uF @ 12kVDC (3)

  •             0.2uF @ 6.5kVDC (2)

  •             0.2uF @ 9kVDC

  •             2uF @ 800VDC

  • Dimensions: 3.25"H x 6"W x 4.5"D

  • Application: Airborne radar





Manufacturers:





| | | | | |
